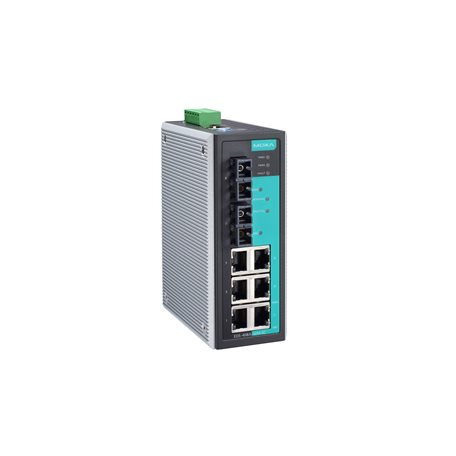

EDS-408A-SS-SC-T

EDS-408A-SS-SC-T

61.544,50 ₺ Kdv Dahil
Stok Kodu
SQZSEMEEFX
Fiyat
950,00 EUR + KDV
WhatsApp Sipariş
Bugün sipariş verdiğiniz de aynı gün kargoda!
Ürün Bilgisi
Ürün Bilgisi
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 6
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection

  • 100BaseFX Ports (single-mode SC connector)

    • 2

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1w for Rapid Spanning Tree Protocol

  • Optical Fiber

Ethernet Software Features

  • Filter

    • 802.1Q VLAN
      GMRP
      GVRP
      IGMP v1/v2
      Port-based VLAN

  • Industrial Protocols

    • EtherNet/IP
      Modbus TCP

  • Management

    • Back Pressure Flow Control
      BOOTP
      DHCP Option 66/67/82
      DHCP Server/Client
      Flow control
      IPv4/IPv6
      LLDP
      Port Mirror
      RARP
      RMON
      SMTP
      SNMP Inform
      SNMPv1/v2c/v3
      Syslog
      Telnet
      TFTP

  • MIB

    • Bridge MIB
      Ethernet-like MIB
      MIB-II
      P-BRIDGE MIB
      RMON MIB Groups 1, 2, 3, 9
      RSTP MIB

  • Redundancy Protocols

    • RSTP
      STP
      Turbo Chain
      Turbo Ring v1/v2

  • Security

    • Broadcast storm protection
      HTTPS/SSL
      NTP authentication
      Port Lock
      SNMPv3
      SSH
      Trust access control

  • Time Management

    • NTP Server/Client
      SNTP
Switch Properties

  • IGMP Groups

    • 256

  • MAC Table Size

    • 8 K

  • Max. No. of VLANs

    • 64

  • Packet Buffer Size

    • 1 Mbits

  • Priority Queues

    • 4

  • VLAN ID Range

    • VID 1 to 4094
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration

  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserve
Input/Output Interface

  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC
Power Parameters

  • Connection

    • 1 removable 6-contact terminal block(s)

  • Input Voltage

    • 12/24/48 VDC
      Redundant dual inputs

  • Operating Voltage

    • 9.6 to 60 VDC

  • Input Current

    • 0.61 @ 12 VDC
      0.3 @ 24 VDC
      0.16 @ 48 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP30

  • Dimensions

    • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

  • Weight

    • 650 g (1.44 lb)

  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • UL 508

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Hazardous Locations

    • ATEX
      Class I Division 2
      IECEx

  • Railway

    • EN 50121-4

  • Traffic Control

    • EDS-408A, EDS-408A-MM-SC/MM-ST/SS-SC/EIP/PN models: NEMA TS2

  • Vibration

    • IEC 60068-2-6

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-31

  • Maritime

    • NK
      DNV
MTBF

  • Time

    • 1,253,072 hrs

  • Standards

    • Telcordia (Bellcore), GB
